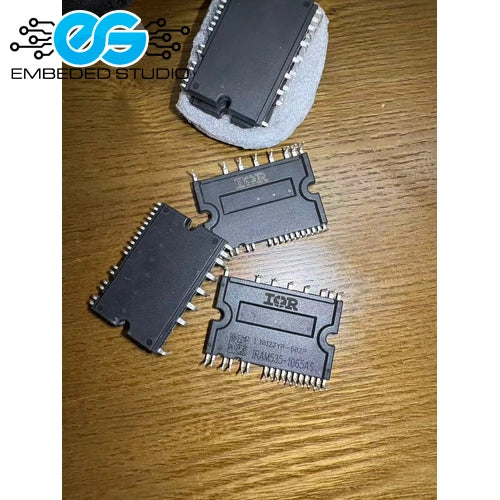

IRAM535-1065AS

IRAM535-1065AS

The IRAM535-1065AS is a Power Integrated Module (PIM) produced by International Rectifier (now part of Infineon Technologies). This module combines multiple components, such as a MOSFET or IGBT (Insulated Gate Bipolar Transistor), diodes, and drivers, in a single package to improve efficiency and simplify circuit design. It’s commonly used in power electronics applications, such as motor drives, inverters, and other systems where high power switching is required.

Key Specifications

• Voltage rating: ~600V
• Continuous current: ~15–16A
• Peak current: up to ~30A
• Operating temp: −40°C to 125°C
• Switching frequency: up to ~20 kHz
• Package: SIP (Single Inline Package

🔌 Common Applications

• AC/DC motor drives (fans, compressors, industrial motors)
• Inverters (UPS, solar systems)
• Home appliances (washing machines, HVAC)
• Industrial automation & robotics
• Electric vehicle subsystems

IRAM535-1065AS

IRAM535-1065AS available in Pakistan
