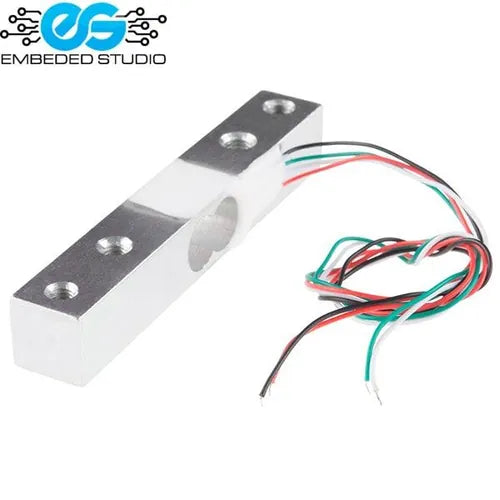

Load Cell Weighing Sensor — Strain Gauge for HX711 ADC Module
A load cell is a transducer that converts mechanical force (weight) into an electrical signal. Paired with the HX711 24-bit ADC amplifier module, it forms the backbone of precision digital weighing scales, industrial force measurement systems, and DIY weight sensors in Pakistan. Available in various capacities to suit your application.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Strain gauge load cell (Wheatstone bridge) |
| Output | Analog differential (mV/V) |
| Excitation Voltage | 5V – 10V DC |
| Output Sensitivity | 1.0 – 2.0 mV/V (typical) |
| Accuracy Class | C3 (typical) |
| Operating Temperature | -20°C to +65°C |
| Cable | 4-wire (Red: E+, Black: E-, White: S+, Green: S-) |
| Compatible ADC | HX711 24-bit ADC module |
Key Features
- High precision strain gauge measurement
- 4-wire Wheatstone bridge output — compatible with HX711
- Available in multiple capacities (1kg, 5kg, 10kg, 50kg, etc.)
- Compact and easy to mount
- Compatible with Arduino, ESP32, and any MCU via HX711
Wiring (with HX711)
Connect: Red → E+, Black → E-, White → A+, Green → A- on the HX711 module.
Applications
- Digital weighing scales and balances
- Industrial force and weight measurement
- Postal and parcel weighing systems
- Smart agriculture (grain/produce weighing)
- Structural load monitoring
