VendorMy Store
SKU:MACH3-BREAKOUT

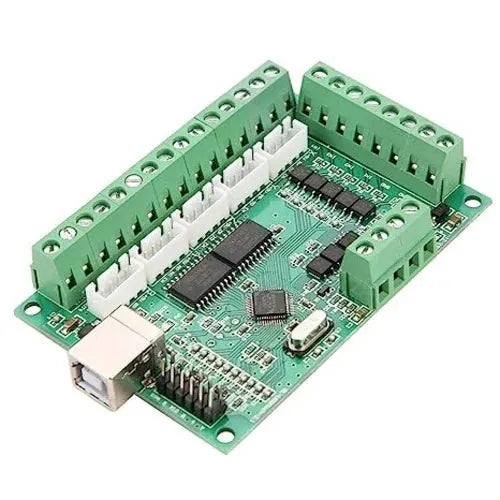

Mach3 CNC Breakout Board 5-Axis Controller
Regular price
Rs.2,500.00
Sale price:
Rs.2,500.00
Regular price:
Rs.1,000.00
Sale:
-0%
Shipping calculated at checkout.
In stock, ready to ship
Mach3 CNC Breakout Board
The latest upgraded 5 axis breakout board is specially designed for the CNC single axis 2-phase stepper driver controller, such as M542, M542H, MA860H, 2M542, 2M982, DM542(A), DM860(A) etc. single axis stepper driver controller series. With this 5 axis breakout board, any 1-5 single axis stepper driver controllers can be directly controlled by the PC via the MACH3, EMC2, KCAM4, etc.
Mach3 CNC Breakout Board Features
- Maximum support 5-axis stepper motor driver controllers
- Compatible with MACH3, Linux CNC (EMC2) etc. parallel-control CNC software.
- USB power supply and peripherals powered phase are separated to protect computer security.
- All the signals are opto-isolated which can protect your computer security.
- 5-input interface to define the Limit, Emergence-Stop, Cutter alignment, etc.
- Wide input voltage range: 12-24V, and with anti-reverse function.
- One relay output control interface, accessed by the spindle motor or the air pump, water pump, etc.
- Output 0-10V analog voltage for inverter to control the spindle speed.
