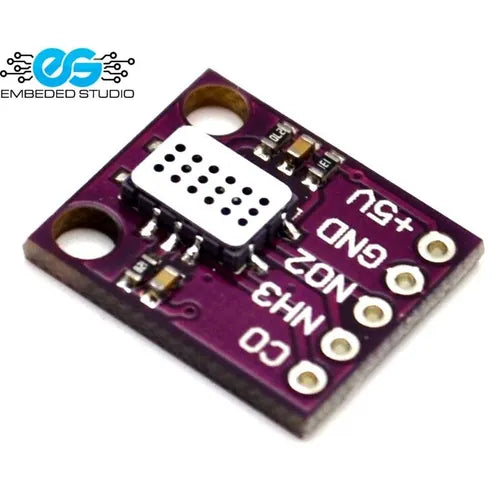

MICS6814 Multi-Gas Sensor Module — CO, NO2, NH3 Detection
Regular price
Rs.4,500.00
Sale price:
Rs.4,500.00
Regular price:
Rs.4,600.00
Sale:
-2%
Shipping calculated at checkout.
In stock, ready to ship
MICS6814 Multi-Gas Sensor Module — CO, NO2, NH3 Detection
The MICS6814 is a compact multi-gas sensor from SGX Sensortech that simultaneously detects three different gases: Carbon Monoxide (CO), Nitrogen Dioxide (NO2), and Ammonia (NH3). It contains three independent sensing elements on a single chip, each with its own analog output — making it ideal for comprehensive air quality monitoring, industrial safety, and smart city applications with Arduino or ESP32.
Technical Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 5V DC |
| Output Type | 3 independent analog outputs |
| CO Detection Range | 1 – 1000 ppm |
| NO2 Detection Range | 0.05 – 10 ppm |
| NH3 Detection Range | 1 – 500 ppm |
| Preheat Time | ~3 minutes (recommended) |
| Response Time | <30 seconds |
| Operating Temperature | -30°C to +85°C |
| Operating Humidity | 5% – 95% RH (non-condensing) |
Pinout
| Pin | Name | Description |
|---|---|---|
| VCC | Power | 5V Supply |
| GND | Ground | Ground |
| CO | CO Output | Analog output for Carbon Monoxide |
| NO2 | NO2 Output | Analog output for Nitrogen Dioxide |
| NH3 | NH3 Output | Analog output for Ammonia |
Key Features
- 3-in-1 gas detection: CO, NO2, and NH3 simultaneously
- Three independent analog outputs — one per gas channel
- Wide detection ranges for each gas type
- Compact single-chip design with onboard heater
- Compatible with Arduino, ESP32, STM32, Raspberry Pi
Applications
- Comprehensive indoor/outdoor air quality monitoring
- Industrial safety and gas leak detection
- Smart city environmental sensing nodes
- Vehicle exhaust and emission monitoring
- Agricultural ammonia monitoring in livestock facilities
