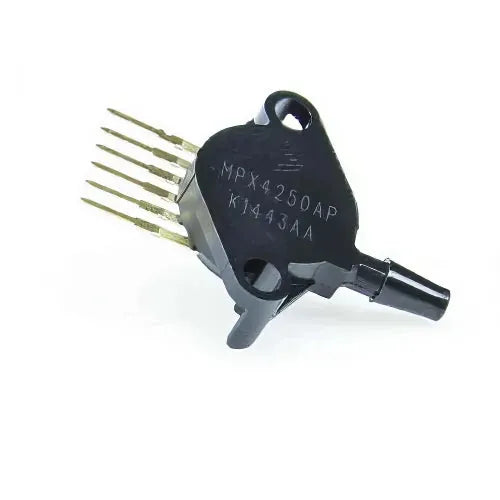

MPX4250 2.5 Bar MAP Sensor — Manifold Absolute Pressure
Regular price
Rs.7,500.00
Sale price:
Rs.7,500.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
In stock, ready to ship
MPX4250 2.5 Bar Manifold Absolute Pressure (MAP) Sensor
The MPX4250 is a piezoresistive pressure sensor from NXP/Freescale designed for measuring manifold absolute pressure (MAP) in automotive and industrial applications. With a 0–250 kPa (0–2.5 bar) measurement range and a ratiometric analog output, it is widely used in engine management systems, barometric pressure measurement, and pneumatic control in Pakistan.
Technical Specifications
| Parameter | Value |
|---|---|
| IC | Freescale / NXP MPX4250 |
| Pressure Range | 0 – 250 kPa (0 – 2.5 bar) |
| Output Type | Analog voltage (ratiometric) |
| Supply Voltage | 5V DC |
| Output Voltage Range | 0.2V – 4.9V (at 5V supply) |
| Accuracy | ±1.5% (full scale span) |
| Response Time | 1ms |
| Operating Temperature | -40°C to +125°C |
| Package | 6-pin SIP (with port) |
Key Features
- Ratiometric analog output — easy to interface with any ADC
- Wide pressure range: 0–250 kPa (0–2.5 bar)
- Fast response time: 1ms
- High accuracy: ±1.5% FSS
- Wide operating temperature: -40°C to +125°C
- Compatible with Arduino, ESP32, and any ADC-equipped MCU
Applications
- Automotive MAP sensing and engine management
- Barometric pressure measurement
- Pneumatic pressure control systems
- Industrial process pressure monitoring
- Altitude measurement
