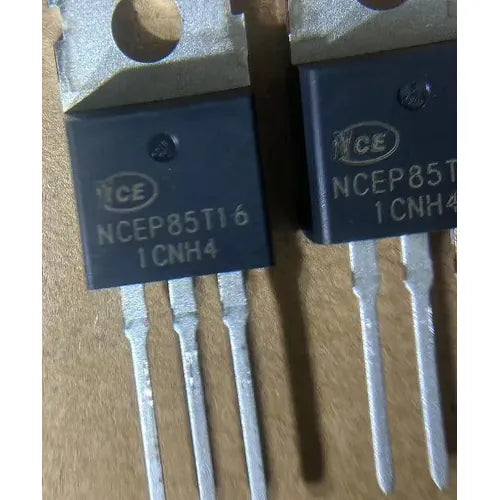

NCEP85T16 MOSFET 85T16

NCEP85T16 MOSFET 85T16 Specifications:

• Type Designator: NCEP85T16
• Type of Transistor: MOSFET
• Type of Control Channel: N -Channel
• Maximum Power Dissipation (Pd): 220 W
• Maximum Drain-Source Voltage |Vds|: 85 V
• Maximum Gate-Source Voltage |Vgs|: 20 V
• Maximum Gate-Threshold Voltage |Vgs(th)|: 4.5 V
• Maximum Drain Current |Id|: 160 A
• Maximum Junction Temperature (Tj): 175 °C
• Total Gate Charge (Qg): 105 nC
• Rise Time (tr): 29 nS
• Drain-Source Capacitance (Cd): 1520 pF
• Maximum Drain-Source On-State Resistance (Rds): 0.0038 Ohm
• Package: TO220

85T16 mosfet in Pakistan
