NEO-6M GPS Module — UART, 3.3V/5V
Regular price
Rs.1,250.00
Sale price:
Rs.1,250.00
Regular price:
Rs.1,400.00
Sale:
-11%
Shipping calculated at checkout.
In stock, ready to ship

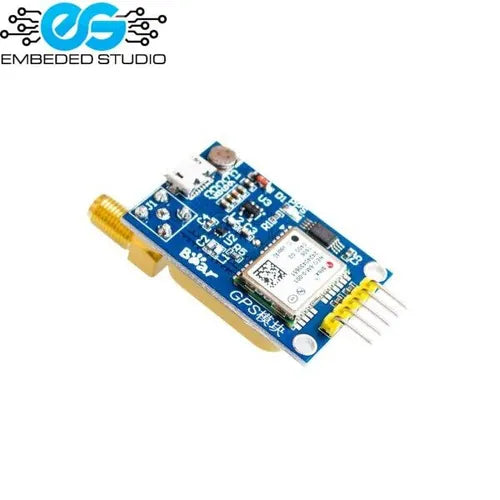

NEO-6M GPS Module — UART Interface with Ceramic Antenna
The NEO-6M GPS Module from u-blox is a compact, high-performance GPS receiver that delivers accurate position data via UART. With its built-in ceramic patch antenna and onboard EEPROM for configuration storage, it locks onto satellites quickly and reliably — making it the go-to GPS module for Arduino, ESP32, and Raspberry Pi navigation projects in Pakistan.
Technical Specifications
| Parameter | Value |
|---|---|
| IC | u-blox NEO-6M |
| Interface | UART (TTL, 9600 baud default) |
| Supply Voltage | 3.3V – 5V DC |
| Operating Current | 45mA (acquisition), 35mA (tracking) |
| Position Accuracy | 2.5m CEP |
| Cold Start Time | 27s (typical) |
| Hot Start Time | 1s (typical) |
| Update Rate | 1Hz (default), up to 5Hz |
| Channels | 50 (acquisition), 22 (tracking) |
| Antenna | Built-in ceramic patch antenna + external SMA connector |
| Operating Temperature | -40°C to +85°C |
Key Features
- u-blox NEO-6M chipset — industry-standard GPS receiver
- UART interface — easy to connect to Arduino, ESP32, Raspberry Pi
- Built-in ceramic patch antenna + SMA connector for external antenna
- Onboard EEPROM retains configuration settings
- Battery backup for faster hot start
- Outputs standard NMEA sentences (GGA, RMC, etc.)
- Compatible with TinyGPS++ library
Applications
- Vehicle and asset tracking systems
- Drone and UAV navigation
- Hiking and outdoor GPS loggers
- Time synchronization (GPS clock)
- Geofencing and location-based IoT projects
