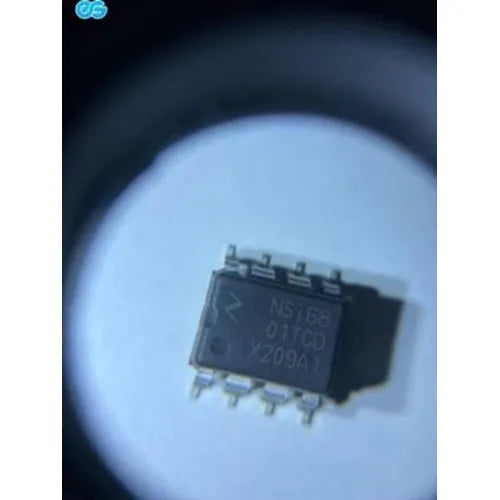

NSI6801TCD single-channel isolated gate driver IC — 5A, 150kV/μs CMTI, opto-compatible, SOP-8

The NSI6801TCD is a single-channel isolated gate driver IC from NSI (Novosense), designed as a high-performance, high-reliability drop-in replacement for traditional opto-coupled gate drivers. With a 5A peak source/sink current capability, 150kV/μs minimum common-mode transient immunity (CMTI), and a maximum supply voltage of 32V, it is well-suited for driving IGBTs and MOSFETs in high-power switching applications.

Unlike conventional optocouplers, the NSI6801TCD uses digital isolation technology while maintaining an LED-emulating input interface — making it pin-compatible with popular opto-coupled gate drivers for seamless board-level replacement. This approach delivers significant advantages over opto-isolated drivers including better long-term reliability, superior aging performance, higher operating temperature range, shorter propagation delay, and reduced pulse width distortion.

Key Specifications:

• Part number: NSI6801TCD
• Channels: 1 (single-channel)
• Peak output current: 5A (source and sink)
• Maximum supply voltage (V_CC2): 32V
• Common-mode transient immunity (CMTI): 150kV/μs minimum
• Input interface: LED-emulating (opto-compatible)
• Propagation delay: short (lower than standard optocouplers)
• Operating temperature: higher range than standard opto-isolated drivers
• Package: SOP-8 (SMD, 8-pin)

Key Features:

• 5A peak gate drive — directly drives IGBT and MOSFET gates for fast, low-loss switching
• 150kV/μs CMTI — robust immunity to high dV/dt transients in high-power switching environments
• Opto-compatible pinout — pin-compatible with popular opto-coupled gate drivers for direct replacement
• LED-emulating input — interfaces directly with existing opto-driver control circuits without redesign
• Better reliability vs optocouplers — no LED aging degradation, stable performance over lifetime
• Shorter propagation delay — enables higher switching frequencies and tighter timing control
• Lower pulse width distortion — more accurate PWM reproduction at the gate
• SOP-8 SMD package — compact footprint for high-density power PCB designs

Applications:

• IGBT and MOSFET gate drive in motor drives and inverters
• Solar inverter gate drive stages
• UPS and industrial power conversion
• Servo drives and variable frequency drives (VFDs)
• Switch-mode power supply (SMPS) gate drive
• Replacement for HCPL-314J, ACPL-302J, and similar opto-coupled gate drivers

Note: Verify input current requirements match your control circuit before replacing an existing optocoupler. Refer to the NSI6801 datasheet for bootstrap supply design, CMTI test conditions, and recommended gate resistor values.
