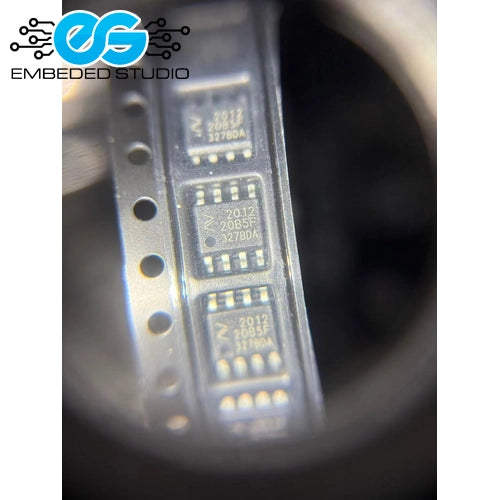

NSM2012-B5F
NSM2012-B5F
NSM2012-B5F is an integrated path current sensor with a very low on-resistance of 1.2mΩ, reducing heat loss on the chip. NOVOSENSE innovative isolation technology and signal
conditioning design can meet high isolation levels while sensing the current flowing through the internal Busbar. A differential Hall pair is used internally, so it has a strong immunity to external stray magnetic fields.NSM2012 supports both a ratio metric output and a fixed
output mode. The fixed mode enables customers to use ADC differential sampling of VREF and VOUT voltages to reduce external common-mode (such as temperature , etc ).
Compared with the current sampling method of the Shunt +isolated op amp, NSM2012 eliminates the need for the primary side power supply and has a simple and convenient
layout. At the same time, it has extremely high isolation withstand voltage and Lifetime stability.In high-side current monitoring applications, NSM2012-B5F can reach a working voltage of 600Vpk, and it can withstand 6kV surge voltage without adding any protection devices.
Applications
Solar system
Industrial power supply
Motor control
OBC/DCDC/PTC Heater
Charging pile
