NUCLEO-F401RE STM32F401RE Nucleo-64 Development Board
Regular price
Rs.6,450.00
Sale price:
Rs.6,450.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
In stock, ready to ship

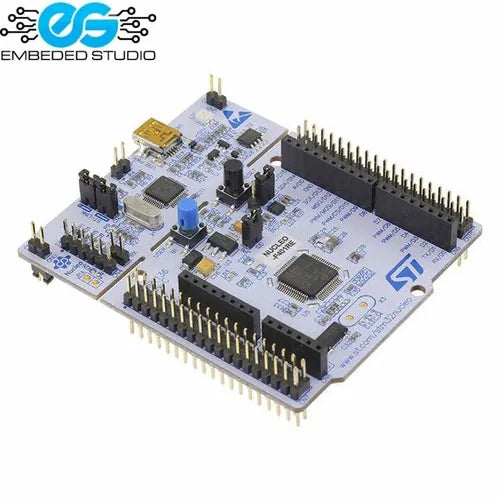

NUCLEO-F401RE — STM32F401RE Nucleo-64 Development Board
The NUCLEO-F401RE is ST Microelectronics' official Nucleo-64 development board powered by the STM32F401RE — an 84MHz Cortex-M4 with FPU, 512KB Flash, and 96KB RAM. Renowned for its low power consumption and excellent price-to-performance ratio, it is one of the most widely used STM32 boards for learning embedded systems, IoT development, and rapid prototyping in Pakistan.
Technical Specifications
| Parameter | Value |
|---|---|
| MCU | STM32F401RET6 (Cortex-M4, 84MHz) |
| Flash | 512KB |
| RAM | 96KB SRAM |
| FPU | Yes (single-precision) |
| GPIO Pins | 50 |
| Timers | 10 |
| Communication | UART, SPI, I2C, USB OTG, SDIO, I2S |
| ADC | 1 × 12-bit, up to 16 channels |
| Debugger | On-board ST-LINK/V2-1 |
| Connectors | Arduino Uno + ST Morpho |
| Power | USB, VIN (7–12V), or 3.3V |
Key Features
- STM32F401RE: 84MHz Cortex-M4 with FPU — ideal balance of performance and power
- 512KB Flash + 96KB RAM for feature-rich applications
- On-board ST-LINK/V2-1 — program and debug without extra hardware
- Arduino Uno and ST Morpho headers for shield compatibility
- Low dynamic power consumption — great for battery-powered projects
- Supports STM32CubeIDE, Keil MDK, IAR EWARM, and Arduino IDE
Applications
- Embedded systems learning and university courses
- IoT sensor nodes and wireless projects
- Motor control and robotics
- Audio and signal processing
- Low-power embedded applications
Buy NUCLEO-F401RE STM32 Development Board at the best price from Embeded Studio.
