NUCLEO-F446ZE STM32F446ZE Development Board
Regular price
Rs.12,000.00
Sale price:
Rs.12,000.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
In stock, ready to ship

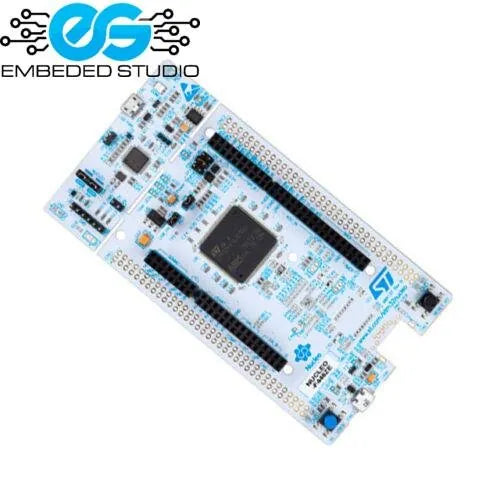

NUCLEO-F446ZE — STM32F446ZE Nucleo-144 Development Board
The NUCLEO-F446ZE is ST Microelectronics' official Nucleo-144 development board featuring the powerful STM32F446ZE microcontroller — a 180MHz Cortex-M4 with FPU, 512KB Flash, and 128KB RAM. With Arduino Uno and ST Morpho connector compatibility, it is the ideal platform for embedded systems development, motor control, DSP applications, and rapid prototyping in Pakistan.
Technical Specifications
| Parameter | Value |
|---|---|
| MCU | STM32F446ZET6 (Cortex-M4, 180MHz) |
| Flash | 512KB |
| RAM | 128KB SRAM |
| FPU | Yes (single-precision) |
| GPIO Pins | 114 |
| Timers | 17 (including advanced motor control) |
| Communication | UART, SPI, I2C, CAN, USB OTG, SAI, SDIO |
| ADC | 3 × 12-bit, up to 24 channels |
| Debugger | On-board ST-LINK/V2-1 |
| Connectors | Arduino Uno + ST Morpho |
| Power | USB, VIN (7–12V), or 3.3V |
Key Features
- STM32F446ZE: 180MHz Cortex-M4 with FPU — high-performance embedded processing
- 512KB Flash + 128KB RAM for complex firmware
- On-board ST-LINK/V2-1 debugger/programmer — no external programmer needed
- Arduino Uno and ST Morpho headers for shield compatibility
- Supports STM32CubeIDE, Keil, IAR, and Arduino IDE
- USB Virtual COM port for easy serial communication
Applications
- Embedded systems and firmware development
- Motor control and industrial automation
- DSP and signal processing projects
- IoT and wireless connectivity prototyping
- University and professional embedded training
Buy NUCLEO-F446ZE STM32 Development Board at the best price from Embeded Studio.
