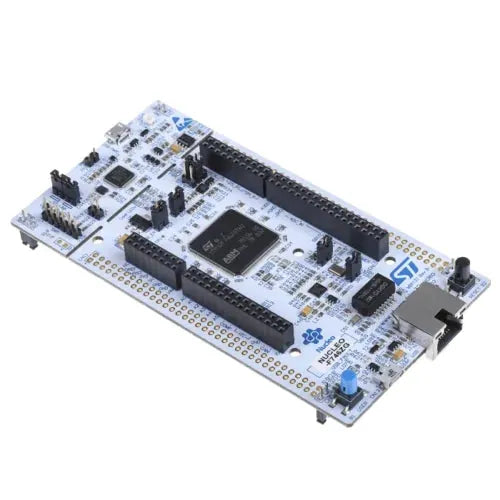

NUCLEO-F746ZG STM32F746ZG Nucleo-144 Development Board
Regular price
Rs.15,000.00
Sale price:
Rs.15,000.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
In stock, ready to ship
NUCLEO-F746ZG — STM32F746ZG Nucleo-144 Development Board
The NUCLEO-F746ZG is ST Microelectronics' flagship Nucleo-144 development board featuring the STM32F746ZG — a 216MHz Cortex-M7 with double-precision FPU, 1MB Flash, and 320KB RAM. As the most powerful board in the Nucleo-144 lineup, it is the go-to platform for demanding embedded applications including real-time DSP, advanced motor control, graphics, and high-speed communication in Pakistan.
Technical Specifications
| Parameter | Value |
|---|---|
| MCU | STM32F746ZGT6 (Cortex-M7, 216MHz) |
| Flash | 1MB |
| RAM | 320KB SRAM (including 64KB TCM) |
| FPU | Yes (double-precision) |
| GPIO Pins | 114 |
| Timers | 18 (including advanced motor control) |
| Communication | UART, SPI, I2C, CAN, USB OTG HS/FS, SAI, SDMMC, Ethernet |
| ADC | 3 × 12-bit, up to 24 channels |
| Debugger | On-board ST-LINK/V2-1 |
| Connectors | Arduino Uno + ST Morpho |
| Power | USB, VIN (7–12V), or 3.3V |
Key Features
- STM32F746ZG: 216MHz Cortex-M7 with double-precision FPU — maximum STM32 performance
- 1MB Flash + 320KB RAM for the most complex embedded applications
- On-board ST-LINK/V2-1 — program and debug without extra hardware
- Ethernet MAC for networked embedded applications
- USB OTG HS and FS for high-speed USB connectivity
- Arduino Uno and ST Morpho headers for shield compatibility
Applications
- Advanced DSP, audio, and signal processing
- High-performance motor control and robotics
- Ethernet-connected IoT and industrial gateways
- Real-time operating systems (RTOS) development
- Graphics and display controller projects
Buy NUCLEO-F746ZG STM32 Development Board at the best price from Embeded Studio.
