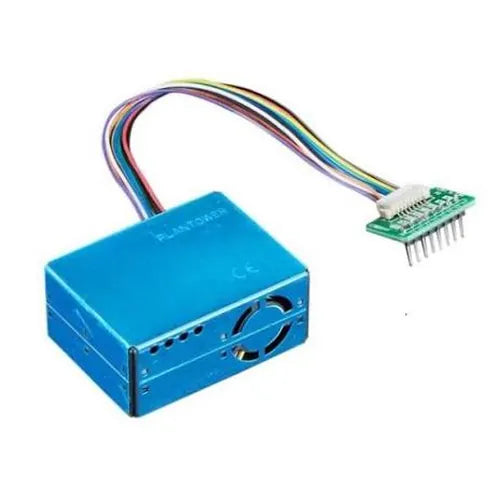

PMS5003 Air Quality Sensor Module — PM2.5 Laser Dust Sensor
Regular price
Rs.4,000.00
Sale price:
Rs.4,000.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
In stock, ready to ship
PMS5003 Air Quality Sensor Module — PM1.0 PM2.5 PM10 Laser Particle Counter
The PMS5003 is a compact, high-precision laser particle concentration sensor that measures PM1.0, PM2.5, and PM10 particulate matter in real time. Widely used in commercial air quality monitors, it delivers reliable digital UART output and is fully compatible with Arduino, ESP32, and Raspberry Pi for DIY air quality projects in Pakistan.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | PMS5003 (G5) |
| Measurement Range | 0.3–10 μm particle size |
| PM Outputs | PM1.0, PM2.5, PM10 (μg/m³) |
| Concentration Range | 0–500 μg/m³ |
| Accuracy | ±10 μg/m³ (0–100 μg/m³) |
| Interface | UART (9600 baud, 3.3V logic) |
| Supply Voltage | 5V DC |
| Current Consumption | ≤100mA (active) |
| Response Time | ≤1 second |
| Connector | 8-pin ZH 1.25mm pitch |
| Dimensions | 50mm × 38mm × 21mm |
| Operating Temperature | -10°C to +60°C |
Key Features
- Measures PM1.0, PM2.5, and PM10 simultaneously
- Laser scattering technology — high accuracy and repeatability
- UART digital output — easy to interface with Arduino, ESP32, Raspberry Pi
- Built-in fan for active air sampling
- Compact and lightweight — ideal for portable monitors
- Compatible with Adafruit PM25AQI Arduino library
Pin Configuration (ZH 1.25mm 8-pin)
Key pins: VCC (5V), GND, TX (UART data out), RX (UART data in), SET (sleep/wake), RESET.
Applications
- Indoor and outdoor air quality monitors
- Smart home air purifier control
- HVAC and ventilation systems
- Environmental research and data logging
- IoT air quality nodes (ESP32/Arduino)
Buy PMS5003 Air Quality Sensor Module at the best price from Embeded Studio.
