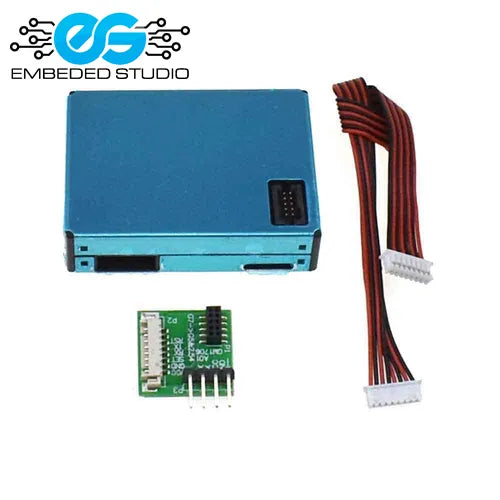

PMS7003 Laser Dust Sensor Module — PM1.0 PM2.5 PM10
Regular price
Rs.4,200.00
Sale price:
Rs.4,200.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
In stock, ready to ship
PMS7003 Laser Dust Sensor Module — High Precision Particulate Matter Sensor
The PMS7003 is a high-precision digital particle concentration sensor that uses laser scattering to measure PM1.0, PM2.5, and PM10 particulate matter in real time. Compact and accurate, it is the preferred choice for air quality monitors, HVAC systems, and environmental research projects in Pakistan.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | PMS7003 (G7) |
| Measurement Range | 0.3–10 μm particle size |
| PM Outputs | PM1.0, PM2.5, PM10 (μg/m³) |
| Concentration Range | 0–500 μg/m³ |
| Accuracy | ±10 μg/m³ (0–100 μg/m³), ±10% (100–500 μg/m³) |
| Interface | UART (9600 baud, 3.3V logic) |
| Supply Voltage | 5V DC |
| Current Consumption | ≤100mA (active), ≤2mA (standby) |
| Response Time | ≤1 second |
| Connector | 10-pin ZH 1.5mm pitch |
| Dimensions | 48mm × 37mm × 12mm |
| Operating Temperature | -10°C to +60°C |
Key Features
- Measures PM1.0, PM2.5, and PM10 simultaneously
- Laser scattering technology — high accuracy and repeatability
- UART digital output — easy to interface with Arduino, ESP32, Raspberry Pi
- Built-in fan for active air sampling
- Standby mode for power saving
- Compact form factor with ZH connector
Pin Configuration (ZH 1.5mm 10-pin)
Key pins: VCC (5V), GND, TX (UART data out), RX (UART data in), SET (sleep/wake control), RESET.
Applications
- Indoor and outdoor air quality monitors
- HVAC and smart ventilation systems
- Environmental research and data logging
- Industrial dust monitoring
- IoT air quality nodes (ESP32/Arduino)
Buy PMS7003 Laser Dust Sensor Module at the best price from Embeded Studio.
