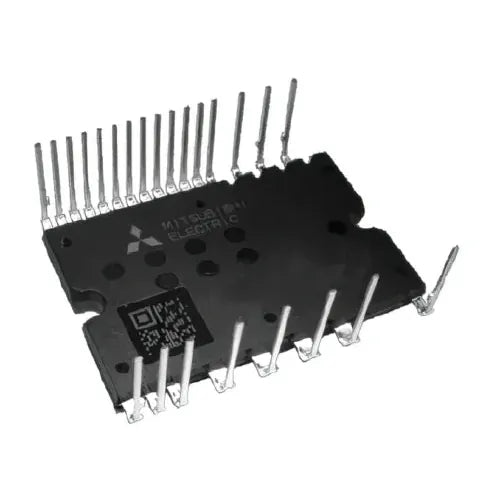

PSS30S92F6-AG / PSS30S92E6-AG IGBT Power Module
Regular price
Rs.1,600.00
Sale price:
Rs.1,600.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
In stock, ready to ship
PSS30S92F6-AG / PSS30S92E6-AG — Mitsubishi IGBT Intelligent Power Module
The PSS30S92F6-AG and PSS30S92E6-AG are Mitsubishi Electric Intelligent Power Modules (IPMs) integrating a 3-phase IGBT inverter bridge with gate drive, protection circuits, and bootstrap power supply in a single compact package. Designed for motor drive applications, these modules simplify inverter design and improve system reliability in industrial and consumer equipment in Pakistan.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Numbers | PSS30S92F6-AG / PSS30S92E6-AG |
| Manufacturer | Mitsubishi Electric |
| Type | Intelligent Power Module (IPM), 3-phase IGBT inverter |
| Collector Current (Ic) | 30A |
| Collector-Emitter Voltage (Vces) | 600V |
| Control Supply Voltage | 15V (VCC) |
| Package | DIP-SPM (surface mount compatible) |
| Built-in Protection | Over-current, short-circuit, over-temperature, under-voltage |
Key Features
- Integrated 3-phase IGBT inverter bridge (30A / 600V)
- Built-in gate drive and bootstrap power supply
- Comprehensive protection: OC, SC, OT, UV lockout
- Compact DIP-SPM package for easy PCB integration
- Designed for AC motor drives and inverter applications
- Reduces BOM and simplifies inverter PCB design
Applications
- Variable frequency drives (VFDs) for AC motors
- Air conditioner compressor inverters
- Industrial motor control systems
- Washing machine and home appliance inverters
- Solar inverters and UPS systems
Buy PSS30S92F6-AG / PSS30S92E6-AG IGBT Power Module at the best price from Embeded Studio.
