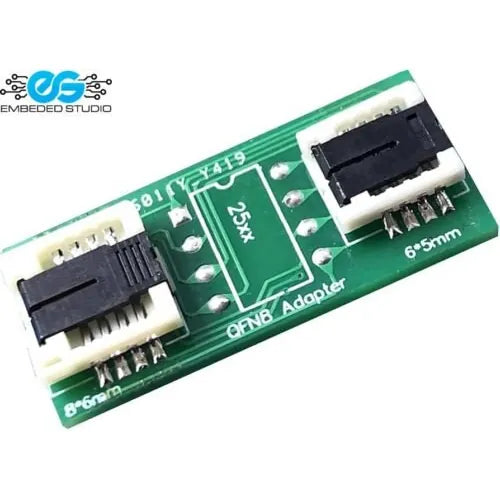

QFN8 WSON8 MLF8 MLP8 DFN8 to DIP8 universal socket adapter — 6×5mm & 8×6mm, 1.27mm pitch
The QFN8/WSON8/MLF8/MLP8/DFN8 to DIP8 universal two-in-one socket adapter converts fine-pitch 8-pin SMD IC packages to a standard DIP8 footprint, enabling direct use with universal IC programmers and test fixtures without soldering. It supports both 6×5mm and 8×6mm chip body sizes at a 1.27mm pitch, covering the most common QFN8 and equivalent package variants used in flash memory, EEPROM, and mixed-signal ICs.
Compatible with a wide range of universal programmers including XGecu TL866II Plus, T56, Superpro, TNM, TOP, GQ-4X, Stager, SOFI, and others, it is an essential adapter for electronics repair technicians, firmware engineers, and IC programmers working with SMD-only components.
Key Specifications:
- Input packages: QFN8, WSON8, MLF8, MLP8, DFN8
- Output interface: DIP8 (standard 2.54mm pitch)
- Supported IC body sizes: 6×5mm and 8×6mm
- Pitch: 1.27mm
- Configuration: two-in-one (supports both body sizes in one adapter)
- No soldering required
Compatible Programmers:
- XGecu TL866II Plus
- XGecu T56
- Superpro series
- TNM, TOP, GQ-4X, Stager, SOFI programmers
- Other universal programmers with DIP8 ZIF socket
Compatible IC Packages:
- QFN8 (Quad Flat No-Lead, 8-pin)
- WSON8 (Very Very Thin Small Outline No-Lead, 8-pin)
- MLF8 / MLP8 (Micro Lead Frame, 8-pin)
- DFN8 (Dual Flat No-Lead, 8-pin)
Key Features:
- Two-in-one design — handles both 6×5mm and 8×6mm chip bodies in a single adapter
- No soldering required — place the IC, close the lid, and program directly
- Tested before shipping — verified for reliable contact and correct pin mapping
- Universal programmer compatibility — works with all major DIP8 ZIF socket programmers
Applications:
- SPI flash and EEPROM programming (W25Q, MX25L, AT25 series in QFN8)
- Firmware flashing and data recovery
- IC testing and verification
- Electronics repair (BIOS chips, router flash, TV flash ICs)
Note: Ensure correct pin 1 orientation before closing the adapter lid. Verify IC body size (6×5mm or 8×6mm) matches the correct socket position before programming.
