SKU:ES-RPI-PICO

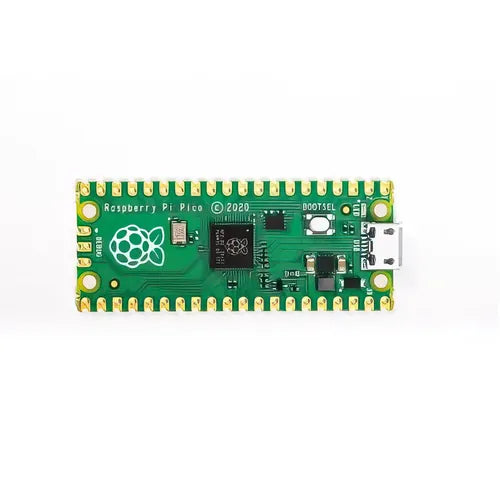

Raspberry Pi Pico — RP2040 dual-core Cortex-M0+, 264KB SRAM, 2MB Flash
Regular price
Rs.1,200.00
Sale price:
Rs.1,200.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
In stock, ready to ship
The Raspberry Pi Pico is the original low-cost, high-performance microcontroller board from Raspberry Pi, built around the RP2040 — Raspberry Pi’s own silicon. With a dual-core Arm Cortex-M0+ processor, flexible I/O, and support for both MicroPython and C/C++, the Pico is an ideal platform for learning embedded systems, building IoT devices, and prototyping electronics projects. Note: the Pico does not include wireless connectivity — for Wi-Fi and Bluetooth, see the Raspberry Pi Pico W.
Key Specifications:
- Microcontroller: Raspberry Pi RP2040
- CPU: Dual-core Arm Cortex-M0+ @ up to 133MHz
- SRAM: 264KB on-chip (6 banks)
- Flash: 2MB QSPI (on-board)
- GPIO: 26 multi-function GPIO pins
- ADC: 3 × 12-bit ADC inputs + 1 internal temperature sensor
- PWM: 16 PWM channels
- Interfaces: 2× UART, 2× SPI, 2× I²C, 16× PWM
- PIO: 2 × PIO blocks, 4 state machines each (8 total) for custom peripherals
- USB: USB 1.1 device and host via micro-USB connector
- Power: 1.8V – 5.5V input via VSYS; onboard LDO
- Low-power modes: sleep and dormant
- Wireless: None (no Wi-Fi or Bluetooth)
- Operating temperature: −20°C to +85°C
- Dimensions: 51mm × 21mm
- Form factor: Castellated module — can be soldered directly to a PCB
GPIO Highlights:
- All GPIO pins support digital I/O, PWM, and PIO
- GP26–GP28: ADC0–ADC2 (12-bit, 500ksps)
- GP0/GP1: Default UART0 TX/RX
- GP4/GP5: Default I²C0 SDA/SCL
- GP16/GP17: Default SPI0 MISO/CS
- 3V3 output: 300mA max (pin 36)
- BOOTSEL button: hold on power-up to enter USB mass storage bootloader
Programming:
- MicroPython (official Raspberry Pi firmware — drag-and-drop UF2)
- C/C++ (Raspberry Pi Pico SDK)
- CircuitPython (Adafruit)
- Arduino IDE (community board package)
- SWD debug interface (via 3-pin header)
Applications:
- Learning embedded systems and MicroPython
- Robotics and motor/servo control
- USB HID devices (keyboard, mouse, gamepad)
- Custom communication protocols via PIO
- Sensor data acquisition and logging
- Low-cost microcontroller projects and prototyping
