Robotic Arm 6 DOF

Robotic Arm 6 DOF — 6 Degrees of Freedom Robot Arm

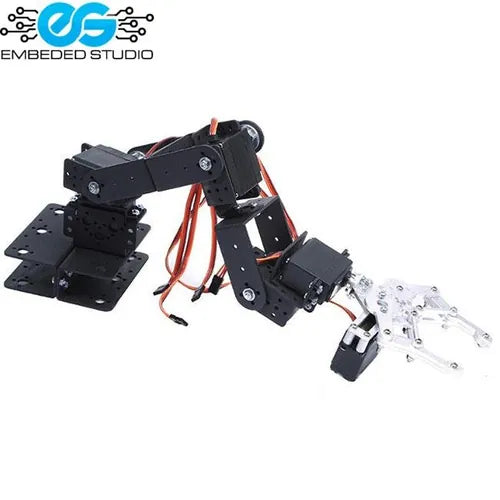

The 6 DOF Robotic Arm is a precision robotic arm built from 3mm thick aluminum sheet, featuring 6 servo motors for complex articulated motion. With a 390mm reach and 32-channel controller, it is ideal for robotics education, school competitions, and advanced automation projects.

Key Specifications

• 6 Degrees of Freedom
• Arm length: 390mm
• 4x DGServo S06NF STD servos (base and arm)
• 2x DGServo S05NF STD micro servos (wrist and gripper)
• 32-channel controller with ATmega168 MCU
• PC RS232 COM communication interface
• MCU power: 6–12V | Servo power: 4.8–6V
• 3mm thick aluminum construction

Key Features

• 360° servo motion for complex articulation
• Controls up to 32 servo motors simultaneously
• Suitable for individual development and school competitions
• Serial interface with PC software included

Applications

• Advanced robotics education
• Pick-and-place automation
• School and university robotics competitions
• Embedded systems development
