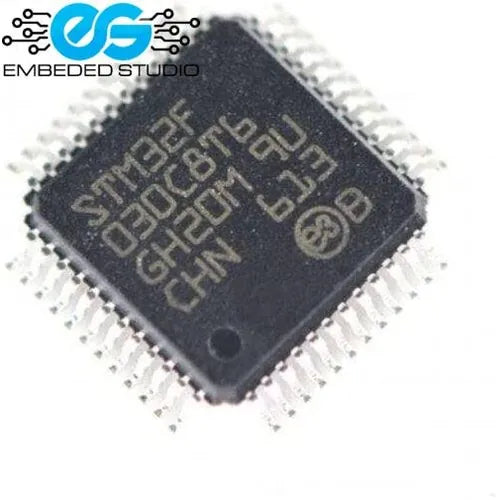

STM32F030C8T6 ARM Cortex-M0 Microcontroller IC
Regular price
Rs.220.00
Sale price:
Rs.220.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
In stock, ready to ship
STM32F030C8T6 — ARM Cortex-M0 Microcontroller (LQFP-48)
The STM32F030C8T6 is one of the most popular entry-level 32-bit ARM Cortex-M0 microcontrollers from ST Microelectronics. With 64KB Flash, 8KB RAM, and a comprehensive peripheral set in an LQFP-48 package, it delivers 32-bit performance at an 8-bit price point — making it the go-to MCU for cost-sensitive embedded designs, consumer electronics, and industrial control applications in Pakistan.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | STM32F030C8T6 |
| Core | ARM Cortex-M0, 48MHz |
| Flash | 64KB |
| RAM | 8KB SRAM |
| GPIO Pins | 37 |
| Timers | 8 (16-bit and 32-bit) |
| Communication | UART, SPI, I2C, USB (device) |
| ADC | 1 × 12-bit, up to 16 channels |
| Package | LQFP-48 |
| Supply Voltage | 2.4V – 3.6V |
| Operating Temperature | -40°C to +85°C |
Key Features
- 48MHz ARM Cortex-M0 — 32-bit performance at 8-bit cost
- 64KB Flash + 8KB RAM — double the memory of STM32F030K6T6
- 37 GPIO pins in LQFP-48 — more I/O for complex designs
- Rich peripherals: UART, SPI, I2C, USB, ADC, timers
- Low power modes for battery-powered applications
- Supported by STM32CubeIDE, Keil MDK, IAR, and Arduino (STM32duino)
Applications
- Consumer electronics and home appliance control
- Industrial sensor interfaces and data acquisition
- Motor control and LED dimming
- USB HID and CDC device development
- Replacing legacy 8-bit MCUs with 32-bit performance
Buy STM32F030C8T6 ARM Cortex-M0 Microcontroller at the best price from Embeded Studio.
