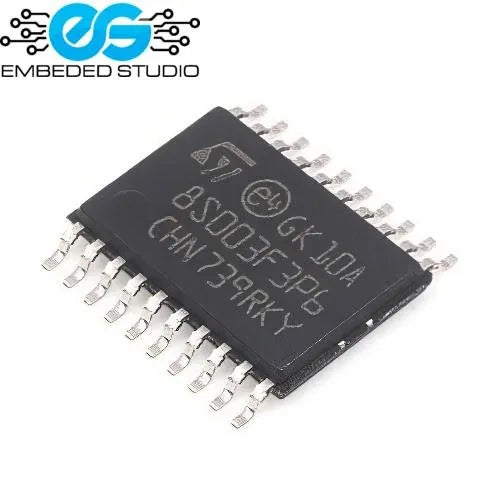

STM8S003F3P6 8-Bit STM8 Microcontroller IC
Regular price
Rs.65.00
Sale price:
Rs.65.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
In stock, ready to ship
STM8S003F3P6 — 8-Bit STM8S Microcontroller (TSSOP-20)
The STM8S003F3P6 is a popular ultra-low-cost 8-bit microcontroller from ST Microelectronics, widely used as a direct replacement for legacy 8-bit MCUs in consumer electronics, home appliances, and industrial control. With 8KB Flash, 1KB RAM, and a rich peripheral set in a compact TSSOP-20 package, it offers excellent value for high-volume embedded designs in Pakistan.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | STM8S003F3P6 |
| Core | STM8 8-bit, 16MHz |
| Flash | 8KB |
| RAM | 1KB SRAM |
| EEPROM | 128 bytes |
| GPIO Pins | 16 |
| Timers | 3 (16-bit advanced + basic) |
| Communication | UART, SPI, I2C |
| ADC | 1 × 10-bit, up to 5 channels |
| Package | TSSOP-20 |
| Supply Voltage | 2.95V – 5.5V |
| Operating Temperature | -40°C to +85°C |
Key Features
- Ultra-low-cost 8-bit MCU — ideal for high-volume, cost-sensitive designs
- 8KB Flash + 1KB RAM + 128B EEPROM
- Wide supply voltage: 2.95V – 5.5V — works with 3.3V and 5V systems
- UART, SPI, I2C peripherals for sensor and display interfacing
- 10-bit ADC for analog signal acquisition
- Supported by STM8CubeMX, STVD, and Arduino (STM8duino)
Applications
- Consumer electronics and home appliance control
- LED lighting and dimming control
- Motor speed control and fan controllers
- Sensor interfaces and data loggers
- Replacing legacy 8051 and PIC MCUs
Buy STM8S003F3P6 8-Bit Microcontroller at the best price from Embeded Studio.
