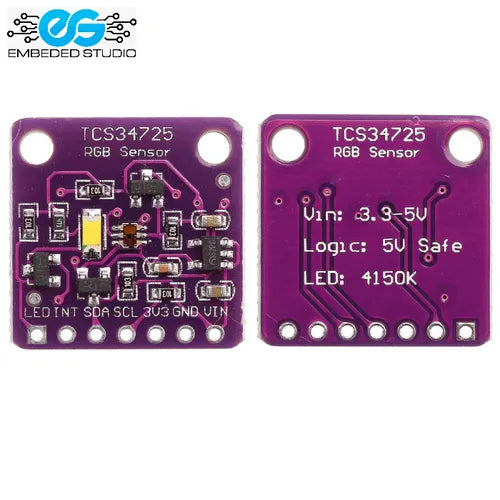

TCS34725 RGB Color Sensor Module — I2C | Arduino Compatible

The TCS34725 Color Sensor Module uses the ams TCS34725 IC to detect and measure red, green, blue, and clear (RGBC) light with exceptional accuracy. Its built-in IR blocking filter ensures true color readings by eliminating infrared interference, making it reliable even in varying ambient light conditions. With a 16-bit ADC per channel and programmable gain and integration time, it is one of the most precise color sensors available for microcontroller projects.

Key Specifications:

• Sensor IC: ams TCS34725
• Color channels: Red, Green, Blue, Clear (RGBC)
• Interface: I2C (fixed address: 0x29)
• Supply voltage: 3.3V – 5V DC
• ADC resolution: 16-bit per channel
• IR blocking filter: built-in on-chip
• Programmable gain: 1×, 4×, 16×, 60×
• Integration time: 2.4ms – 700ms (programmable)
• On-board white LED for active illumination
• Operating temperature: −40°C to +85°C
• Module dimensions: ~20mm × 20mm

I2C Pinout:

• VIN: 3.3V – 5V power input
• GND: Ground
• SDA: I2C data
• SCL: I2C clock
• INT: Interrupt output (active low)
• LED: LED control (pull low to disable onboard LED)

Compatible With:

• Arduino Uno, Nano, Mega (via Wire library)
• ESP32 and ESP8266
• Raspberry Pi (via I2C)
• Adafruit TCS34725 Arduino library (plug-and-play)

Applications:

• Color sorting machines and conveyor systems
• Display and monitor color calibration
• Smart RGB LED lighting control
• Paint and ink color matching
• Robotics — line following with color detection
• Food quality inspection systems
