TLP250 / TLP250H / TLP250S / TLP250F Optocoupler gate driver IC DIP-8 SOP-8
Regular price
Rs.275.00
Sale price:
Rs.275.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
Version:
TLP250F DIP (New)
In stock, ready to ship

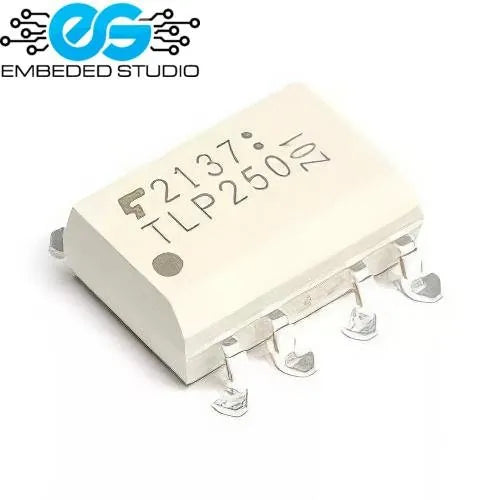

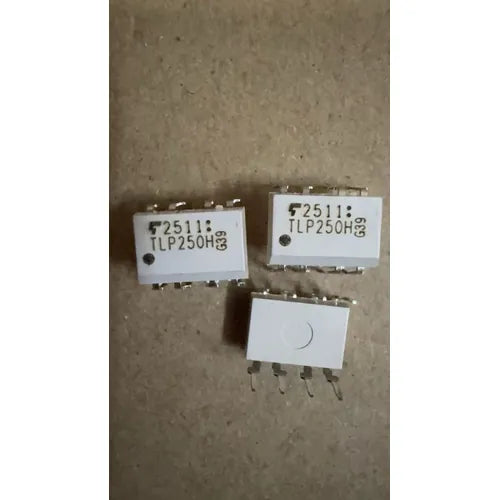

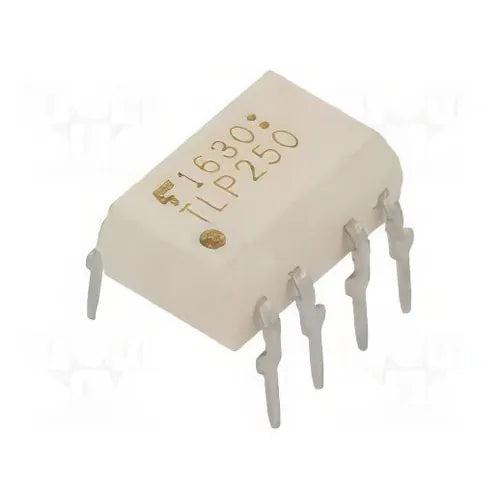

TLP250 / TLP250H / TLP250S — Optocoupler Gate Driver IC
The TLP250, TLP250H, and TLP250S are high-speed optocoupler gate driver ICs from Toshiba, widely used to drive IGBTs and power MOSFETs with full galvanic isolation. All variants offer fast propagation delay and wide supply voltage range, making them the go-to isolated gate drivers for inverters, motor drives, and switching power supplies.
Technical Specifications
| Parameter | TLP250 (DIP-8) | TLP250H (DIP-8) | TLP250S (SOP-8) |
|---|---|---|---|
| Isolation Voltage | 2500V RMS | 2500V RMS | 2500V RMS |
| Output Supply (V₂CC) | 10V – 35V | 10V – 35V | 10V – 35V |
| Peak Output Current | ±2.5A | ±3.5A | ±2.5A |
| Propagation Delay | typ. 35ns | typ. 35ns | typ. 35ns |
| Input LED Current | 5mA – 16mA | 5mA – 16mA | 5mA – 16mA |
| Package | DIP-8 | DIP-8 | SOP-8 |
Key Features
- 2500V RMS galvanic isolation — protects MCU from high-voltage power stage
- TLP250H offers higher ±3.5A peak output — ideal for larger IGBT/MOSFET gate capacitances
- Fast 35ns propagation delay — suitable for high-frequency switching
- Wide supply range 10V–35V — compatible with standard gate drive supplies
- Available in DIP-8 (TLP250, TLP250H) and SOP-8 (TLP250S) packages
Applications
- IGBT and MOSFET gate driving in inverters
- 3-phase motor drives and servo controllers
- Isolated DC-DC converters
- UPS and solar inverter systems
- Industrial power electronics
