TLP350 / TLP350S / TLP350H Optocoupler gate driver IC DIP-8 SOP-8
Regular price
Rs.140.00
Sale price:
Rs.140.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
Version:
TLP350 DIP (New)
In stock, ready to ship
TLP350 / TLP350S — High-Speed Optocoupler Gate Driver IC

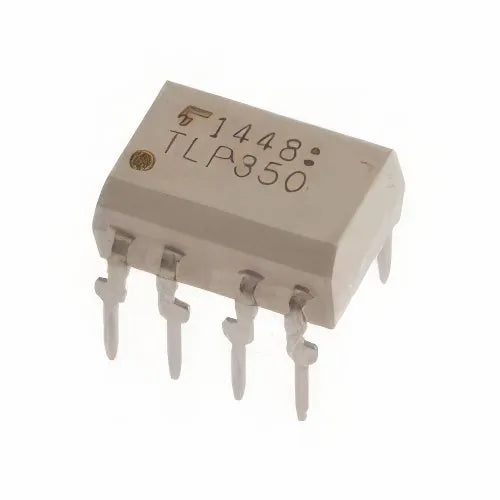

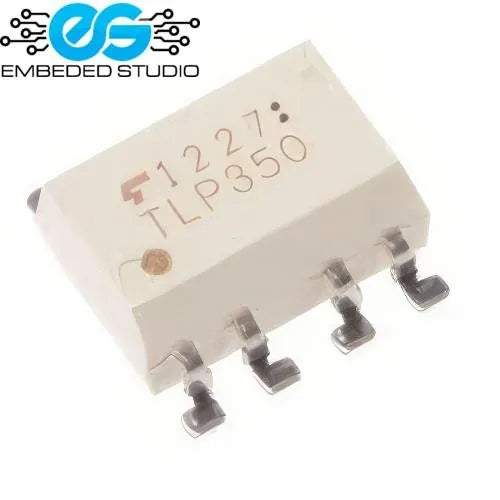

The TLP350 (DIP-8) and TLP350S (SOP-8) are high-speed optocoupler gate driver ICs from Toshiba, designed for driving IGBTs and power MOSFETs with full galvanic isolation. With a ±1.5A peak output current, ultra-fast 100ns propagation delay, and a wide supply voltage range, the TLP350 is ideal for high-frequency inverters, motor drives, and switching power supplies.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | TLP350 (DIP-8) / TLP350S (SOP-8) |
| Type | Optocoupler Gate Driver |
| Isolation Voltage | 2500V RMS |
| Output Supply (V₂CC) | 10V – 30V |
| Peak Output Current | ±1.5A |
| Propagation Delay | typ. 100ns |
| Input LED Current (I₂F) | 5mA – 20mA |
| Packages | DIP-8 (TLP350), SOP-8 (TLP350S) |
Key Features
- 2500V RMS galvanic isolation — protects MCU from high-voltage power stage
- ±1.5A peak output current — drives IGBT/MOSFET gate capacitances efficiently
- Fast 100ns propagation delay — suitable for high-frequency switching
- Wide supply range 10V–30V — compatible with standard gate drive supplies
- Available in DIP-8 and SOP-8 packages
Applications
- IGBT and MOSFET gate driving in inverters
- 3-phase motor drives and servo controllers
- Isolated DC-DC converters
- UPS and solar inverter systems
- Industrial power electronics
