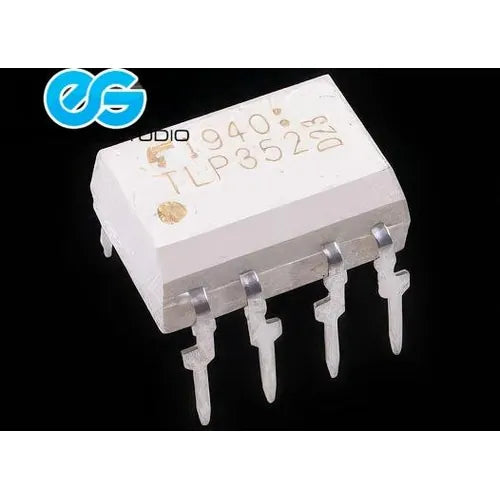

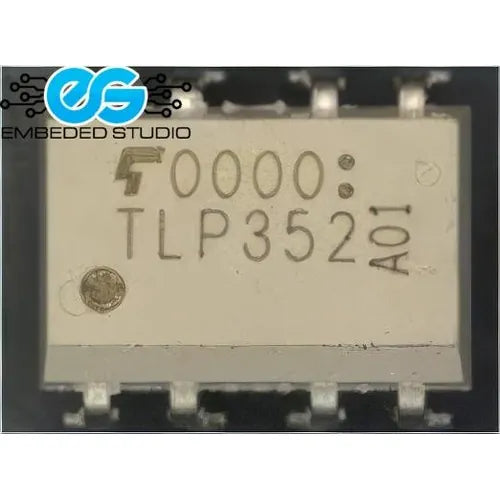

TLP352 Optocoupler Gate Driver IC DIP-8 / TLP352S SOP-8
Regular price
Rs.120.00
Sale price:
Rs.120.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
Version:
TLP352 DIP
In stock, ready to ship
TLP352 / TLP352S — High-Speed Optocoupler Gate Driver IC
The TLP352 (DIP-8) and TLP352S (SOP-8) are high-speed optocoupler gate driver ICs from Toshiba, designed for driving IGBTs and power MOSFETs with full galvanic isolation. Featuring a ±1.5A peak output current, fast propagation delay, and a wide supply voltage range, the TLP352 is ideal for high-frequency inverters, motor drives, and switching power supplies in Pakistan.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | TLP352 (DIP-8) / TLP352S (SOP-8) |
| Type | Optocoupler Gate Driver |
| Isolation Voltage | 2500V RMS |
| Output Supply (V₂CC) | 10V – 30V |
| Peak Output Current | ±1.5A |
| Propagation Delay | typ. 100ns |
| Input LED Current (I₂F) | 5mA – 20mA |
| Packages | DIP-8 (TLP352), SOP-8 (TLP352S) |
Key Features
- 2500V RMS galvanic isolation — protects MCU from high-voltage power stage
- ±1.5A peak output current — drives IGBT/MOSFET gate capacitances efficiently
- Fast propagation delay — suitable for high-frequency switching
- Wide supply range 10V–30V — compatible with standard gate drive supplies
- Available in DIP-8 and SOP-8 packages
Applications
- IGBT and MOSFET gate driving in inverters
- 3-phase motor drives and servo controllers
- Isolated DC-DC converters
- UPS and solar inverter systems
- Industrial power electronics
Buy TLP352 / TLP352S Optocoupler Gate Driver IC at the best price from Embeded Studio.
