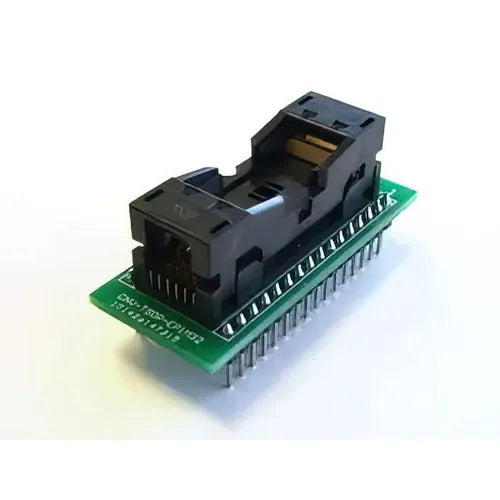

TSOP EP1M 32-pin SMD IC test socket — for TSOP32 NAND flash and memory programming
The TSOP EP1M 32-pin SMD IC test socket is a precision-engineered programming and test socket designed for TSOP32 (Thin Small Outline Package) memory ICs, including NAND flash, NOR flash, and parallel memory devices. It allows secure, reliable, and repeatable insertion and removal of TSOP32 SMD chips without soldering, making it indispensable for IC programming, testing, and development workflows.
The socket converts the fine-pitch TSOP32 SMD footprint to a standard through-hole or ZIF-compatible interface, enabling use with universal programmers, chip testers, and development boards. Its precision contact design ensures low contact resistance and consistent electrical connection across all 32 pins.
Key Specifications:
- Socket type: TSOP EP1M (test/programming socket)
- Pin count: 32 pins
- Package compatibility: TSOP32 (Thin Small Outline Package, 32-pin)
- Pitch: 0.5mm (TSOP standard)
- Contact type: precision spring-loaded or clamshell contacts
- Interface: converts TSOP32 SMD to through-hole / programmer interface
- Compatible ICs: NAND flash, NOR flash, parallel EEPROM, SRAM in TSOP32 package
Key Features:
- No-solder IC testing — insert and remove TSOP32 chips repeatedly without PCB soldering
- Precision contacts — low contact resistance for reliable signal integrity across all 32 pins
- Universal programmer compatible — works with TL866, T48, XGecu, and other universal programmers via adapter
- Repeatable use — designed for high insertion cycle life in production and lab environments
- Compact form factor — fits standard programmer adapter sockets
Compatible ICs (examples):
- NAND flash: K9F1G08, MT29F series, HY27UF series (TSOP32)
- NOR flash: MX29LV series, AM29F series (TSOP32)
- Parallel EEPROM and SRAM in TSOP32 package
Applications:
- NAND/NOR flash IC programming and verification
- Memory chip testing and failure analysis
- Firmware flashing and data recovery
- IC development and prototyping
- Universal programmer adapter use
Note: Ensure correct pin 1 orientation before inserting the IC. Verify compatibility with your programmer or test fixture before use.
