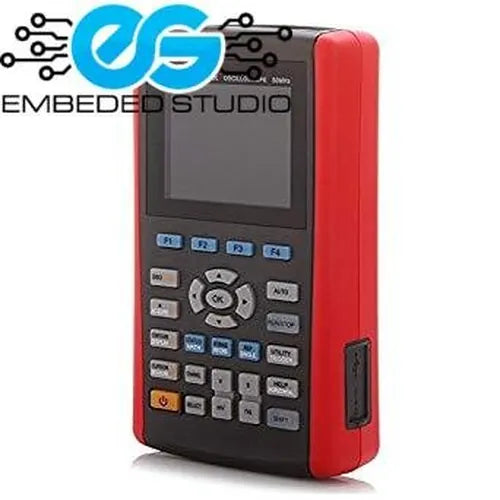

UTD1050DL HANDHELD DIGITAL STORAGE OSCILLOSCOPE 50MHZ
UNI-T UTD1050DL is a dual channel lightweight, handheld oscilloscope with 50 MHz bandwidth and 250 MS/s sample rate. UNI-T UTD1050DL handheld digital oscilloscope also performs multimeter measuring functions: AC/DC voltage and current, resistance, capacity, diode and continuity tests.
Product Features:
1、 Fully Auto Scale; Vertical Scale and Timebase automatically adjusted with the signal and without any manual interference;
2、 Unique and powerful Auto Setup, quick and accurate to set up for signals with any DC component;
3、 Wider voltage measuring range; Coupled with 10×probe with attenuation up to 200V/div;
4、 Isolated USB for much safer communication;
5、 White and black display for your option, perfect for use outdoors with strong light;
Channels:2
Bandwidth:50MHz
Sample Rate:250MS/s
Rise Time:≤7ns
Memory Depth:12kpts
Vertical Sensitivity:5mV/div～20V/div
Timebase Range:5ns/div～50s/div
Storage:Bitmap, Setup, Waveform
Trigger Modes:Edge, Pulse, Video, Slope
Interface:Mini USB
Multimeter Specifications
DC Voltage (V):400.0mV/ 4.000V/ 40.00V/ 400.0V
AC Voltage (V):400.0mV/ 4.000V/ 40.00V/ 400.0V
DC Current (A)(External Convertor):400.0μA/ 4000μA;40.0mA/ 400mA;4A
AC Current (A)(45Hz～400Hz)(External Convertor):400.0μA/ 4000μA;40.0mA/ 400mA;4A
Resistance (Ω):400.0Ω/4.000kΩ/40.00kΩ/400.0kΩ/4.000MΩ;40.00MΩ
Capacitance (F):51.20nF/512.0nF/5.120μF/51.20μF/100μF
Display Count:4000
Power:Lithium Battery: 7.4V 3600mAh;DC Adapter: 100～240V 50/60Hz input, 9V 4A Output
LCD Size:3.5 Inches 64K Color TFT LCD, 320×240
