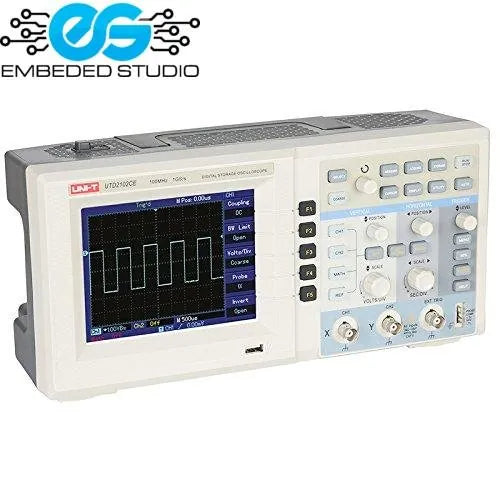

UTD2102CE dual-channel digital storage oscilloscope — 100MHz, 1GSa/s, 7" TFT, USB OTG
The UTD2102CE is a professional dual-channel digital storage oscilloscope (DSO) with a 100MHz bandwidth and 1GSa/s real-time sampling rate. Featuring a large 7-inch 64k colour TFT LCD at 800×480 resolution, it delivers crisp, detailed waveform visualisation for demanding signal analysis tasks. With a 25kpts memory depth and a waveform acquisition rate of ≥2000 wfms/s, it captures fast transients and complex signals with precision.
The UTD2102CE supports multiple trigger modes including Edge, Pulse, Video, Slope, and Alternate, making it versatile for digital, analogue, and video signal work. USB OTG connectivity enables direct waveform and screenshot storage to a USB flash drive, and the universal 100–240VAC power input makes it suitable for use across Pakistan and internationally.
Key Specifications:
- Model: UTD2102CE
- Channels: 2 (dual channel)
- Bandwidth: 100MHz
- Real-time sampling rate: 1GSa/s
- Rise time: ≤3.5ns
- Memory depth: 25kpts
- Waveform acquisition rate: ≥2000 wfms/s
- Vertical sensitivity: 1mV/div – 20V/div
- Timebase range: 2ns/div – 50s/div
- Trigger modes: Edge, Pulse, Video, Slope, Alternate
- Storage: Setup, waveform, bitmap (screenshot)
- Interface: USB OTG
- Display: 7" 64k colour TFT LCD, 800×480
- Power input: 100–240VAC, 45–440Hz (universal)
- Net weight: 2.2kg
- Dimensions (W×H×D): 306mm × 147mm × 122mm
- Colour: White and grey
Key Features:
- 100MHz / 1GSa/s — captures fast digital and analogue signals with high fidelity
- Dual channels — simultaneously view and compare two signals for phase, timing, and amplitude analysis
- 7" 64k colour TFT display — large, vivid screen for clear waveform detail in any lighting
- 25kpts memory depth — capture long signal sequences without losing detail
- Multiple trigger modes — Edge, Pulse, Video, Slope, and Alternate for versatile signal capture
- USB OTG — save waveforms and screenshots directly to a USB flash drive
- Universal AC input — 100–240VAC, compatible with Pakistani and international power supplies
Applications:
- Electronics R&D and prototype debugging
- Embedded systems and microcontroller signal analysis
- Power electronics waveform measurement (PWM, switching)
- Sensor and transducer signal verification
- Education and university electronics labs
- Industrial maintenance and fault diagnosis
- Audio and video signal testing
