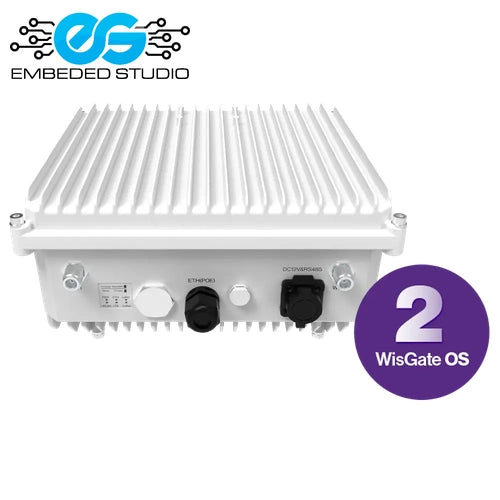

WisGate Connect Outdoor industrial IoT gateway — RAKwireless, Raspberry Pi CM4/CM5, LoRaWAN, LTE, Wi-Fi, IP67
The WisGate Connect Outdoor is a ruggedised industrial IoT gateway from RAKwireless, built on the Raspberry Pi Compute Module 4 (CM4) or CM5 platform. Designed for outdoor and harsh-environment deployments, it combines the flexibility of the Raspberry Pi ecosystem with enterprise-grade connectivity — supporting LoRaWAN, LTE/4G, Wi-Fi, and Ethernet in a single IP67-rated enclosure.
Powered by the Raspberry Pi CM4/CM5, the WisGate Connect Outdoor runs a full Linux OS, enabling custom application development, edge computing, and local data processing without cloud dependency. It is ideal for smart agriculture, industrial monitoring, smart city infrastructure, and any outdoor IoT deployment requiring reliable multi-protocol connectivity and edge intelligence.
Key Specifications:
- Model: WisGate Connect Outdoor
- Manufacturer: RAKwireless
- Core: Raspberry Pi CM4 or CM5 (user-selectable)
- OS: Linux (Raspberry Pi OS / custom)
- LoRaWAN: supported via RAK LoRa concentrator module
- Cellular: LTE/4G (nano SIM slot)
- Wi-Fi: 2.4GHz / 5GHz (CM4/CM5 onboard)
- Ethernet: Gigabit Ethernet port
- Enclosure: IP67-rated outdoor housing
- Power: PoE (802.3af/at) or DC input
- Storage: eMMC (CM4/CM5 onboard) + microSD slot
- Operating temperature: −40°C to +70°C
Key Features:
- Raspberry Pi CM4/CM5 core — full Linux OS, Python/Node.js/Docker support, familiar development environment
- Multi-protocol connectivity — LoRaWAN + LTE + Wi-Fi + Ethernet in one device
- IP67-rated enclosure — dust-tight and waterproof for outdoor and industrial environments
- Edge computing capable — run local ML inference, data filtering, and protocol translation at the edge
- PoE powered — single-cable installation for remote outdoor deployments
- Wide operating temperature (−40°C to +70°C) — suitable for extreme climate conditions
Applications:
- Smart agriculture — soil, weather, and irrigation sensor networks
- Industrial IoT — remote equipment monitoring and predictive maintenance
- Smart city infrastructure — parking, lighting, waste, and environmental monitoring
- LoRaWAN network server and packet forwarder deployments
- Edge AI and local data processing for sensor networks
- Utility metering and remote asset tracking
Note: Raspberry Pi CM4 or CM5 module must be specified at time of order — confirm CM variant (RAM/eMMC/Wi-Fi) before purchase. LoRa concentrator module and antenna are included. LTE antenna and SIM card are not included. PoE injector not included. Refer to RAKwireless WisGate Connect Outdoor documentation for initial setup, firmware flashing, and LoRaWAN configuration.
