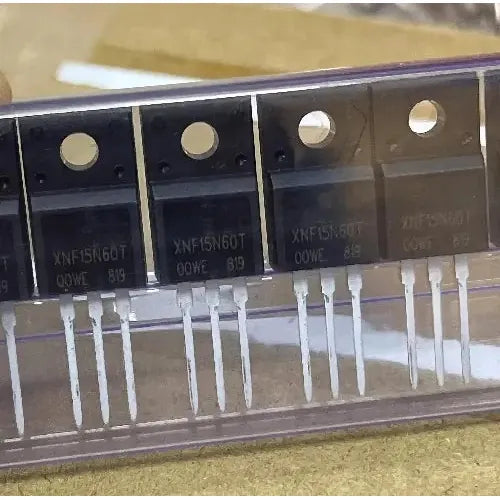

XNF15N60T IGBT 15A 600V
XNF15N60T IGBT 15A 600V Specifications: Type Designator: XNF15N60T Type: IGBT Type of IGBT Channel: N Maximum Power Dissipation (Pc), W: 38 Maximum Collector-Emitter Voltage |Vce|, V: 600 Maximum Gate-Emitter Voltage |Vge|, V: 30 Maximum Collector Current |Ic| @25℃, A: 30 Collector-Emitter saturation Voltage |VCE(sat)|, typ, V: 1.8 Maximum G-E Threshold...
Regular price
Rs.135.00
Regular price
Rs.135.00
XNF15N60T IGBT 15A 600V Specifications:
Type Designator: XNF15N60T Type: IGBT
Type of IGBT Channel: N
Maximum Power Dissipation (Pc), W: 38
Maximum Collector-Emitter Voltage |Vce|, V: 600
Maximum Gate-Emitter Voltage |Vge|, V: 30
Maximum Collector Current |Ic| @25℃, A: 30
Collector-Emitter saturation Voltage |VCE(sat)|, typ, V: 1.8
Maximum G-E Threshold Voltage |VGE(th)|, V: 6.2
Maximum Junction Temperature (Tj), ℃: 175
Rise Time (tr), typ, nS: 36
Collector Capacity (Cc), typ, pF: 37
Total Gate Charge (Qg), typ, nC: 25
Package: TO-220F
15A 600V IGBT price in Pakistan
