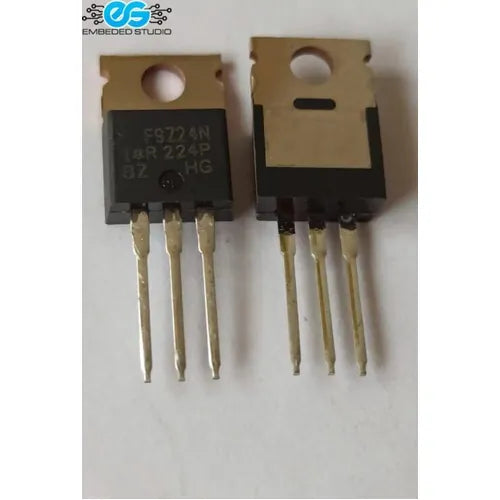

IRF9Z24N MOSFET
IRF9Z24N MOSFET Details: Type of Transistor: MOSFET Type of Control Channel: P -Channel Pdⓘ - Maximum Power Dissipation: 45 W |Vds|ⓘ - Maximum Drain-Source Voltage: 55 V |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V |Vgs(th)|ⓘ - Maximum Gate-Threshold Voltage: 4 V |Id|ⓘ - Maximum Drain Current: 12 A Tjⓘ -...
Regular price
Rs.100.00
Regular price
Rs.100.00
IRF9Z24N MOSFET Details:
Type of Transistor: MOSFET
Type of Control Channel: P -Channel
Pdⓘ - Maximum Power Dissipation: 45 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 55 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Vgs(th)|ⓘ - Maximum Gate-Threshold Voltage: 4 V
|Id|ⓘ - Maximum Drain Current: 12 A
Tjⓘ - Maximum Junction Temperature: 175 °C
Qgⓘ - Total Gate Charge: 19(max) nC
trⓘ - Rise Time: 55 nS
Cossⓘ - Output Capacitance: 170 pF
Rdsⓘ - Maximum Drain-Source On-State Resistance: 0.175 Ohm
IRF9Z24N MOSFET Price in Pakistan
