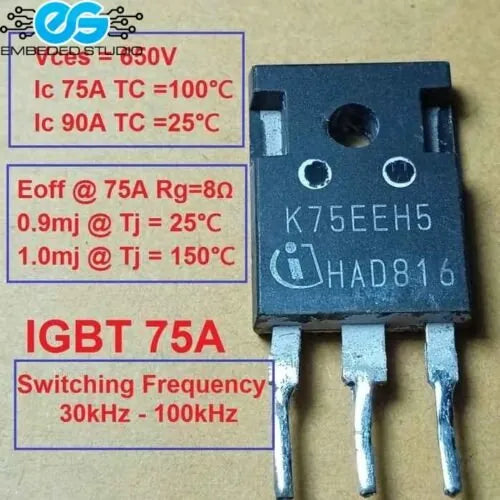

K75EEH5 IGBT
Type: IGBT + Anti-Parallel Diode Marking Code: K75EEH5 Type of IGBT Channel: N Pcⓘ - Maximum Power Dissipation: 395 W |Vce|ⓘ - Maximum Collector-Emitter Voltage: 650 V |Vge|ⓘ - Maximum Gate-Emitter Voltage: 20 V |Ic|ⓘ - Maximum Collector Current: 90 A @25℃ |VCEsat|ⓘ - Collector-Emitter saturation Voltage, typ: 1.65 V...
Regular price
Rs.250.00
Regular price
Rs.250.00
Type: IGBT + Anti-Parallel Diode
Marking Code: K75EEH5
Type of IGBT Channel: N
Pcⓘ - Maximum Power Dissipation: 395 W
|Vce|ⓘ - Maximum Collector-Emitter Voltage: 650 V
|Vge|ⓘ - Maximum Gate-Emitter Voltage: 20 V
|Ic|ⓘ - Maximum Collector Current: 90 A @25℃
|VCEsat|ⓘ - Collector-Emitter saturation Voltage, typ: 1.65 V @25℃
|VGEth|ⓘ - Maximum G-E Threshold Voltag: 4.8 V
Tjⓘ - Maximum Junction Temperature: 175 ℃
trⓘ - Rise Time, typ: 33 nS
Coesⓘ - Output Capacitance, typ: 130 pF
Qgⓘ - Total Gate Charge, typ: 160 nC
Check out more products by clicking here
K75EEH5 IGBT Price in Pakistan
