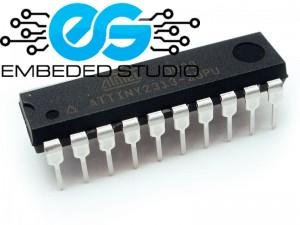

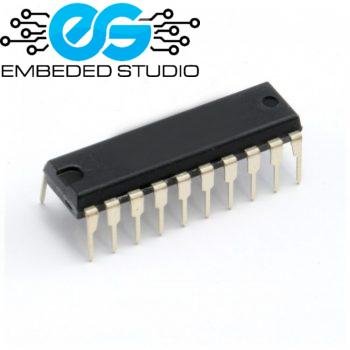

ATtiny2313 Microcontroller AVR


ATtiny2313 Microcontroller Features

  • – debugWIRE On-chip Debugging
  • – In-system programmable via SPI Port
  • – External and Internal Interrupt Sources
  • – Low-power Idle, Power-down, and Standby Modes
  • – Enhanced Power-on Reset Circuit
  • – Programmable Brown-out Detection Circuit
  • – Internal Calibrated Oscillator

500

Compare

The ATtiny2313 Microcontroller provides the following features: 2K bytes of In-System Programmable Flash, 128 bytes EEPROM, 128 bytes SRAM, 18 general purpose I/O lines, 32 general purpose working registers, a single-wire Interface for On-chip Debugging, two flexible Timer/Counters with compare modes, internal and external interrupts, a serial programmable USART, Universal Serial Interface with Start Condition Detector, a programmable Watchdog Timer with internal Oscillator, and three software selectable power saving modes. The Idle mode stops the CPU while allowing the SRAM, Timer/Counters, and interrupt system to continue functioning. The Power-down mode saves the register contents but freezes the Oscillator, disabling all other chip functions until the next interrupt or hardware reset. In Standby mode, the crystal/resonator Oscillator is running while the rest of the device is sleeping. This allows very fast start-up combined with low power consumption.
