Introducing the Arduino Collection – where innovation meets creativity in the world of electronics! Dive into the realm of DIY electronics and programming with our curated selection of products. It is an open-source electronics platform, that has become synonymous with empowering enthusiasts, makers, and inventors to bring their ideas to life.
Arduino
Showing 1–15 of 33 results
-
Sensors, Arduino
10KG Scale Load Cell Weighing Sensor +HX711 Weighing Sensors AD Module
10KG Scale Load Cell Weighing Sensor +HX711 Weighing Sensors AD Module Specifications:
- Material: Mixture
- Model Number: Load Cell
- Usage: Pressure Sensor
- Type: Acceleration Sensor
- Technical Parameters
- Range: 1一10kg
- Output sensitivity: 1.0±0.1mV/V
- Zero output: ±0.1mV/V
- Nonlinear: 0.05% F.S
- Lag: 0.05% F.S
- Repeatability: 0.05% F.S
- Creep: 0.05% F.S/3min
- Output impedance: 1000±5% ohms
- Zero temperature drift: 0.05% F.S/10°C
- Temperature sensitivity drift: 0.05% F.S/10°C
- Unit Type: piece
- Package Weight:0.035kg (0.08lb.)
- Package Size:10cm x 10cm x 2cm (3.94in x 3.94in x 0.79in)
SKU: n/a -
Sensors, Arduino, Modules and Motors
801S Vibration Shock Sensor For Arduino
801S Vibration Shock Sensor For Arduino Specifications:
- Operating Voltage: 3.3V – 5V DC
- Current Consumption: <1mA
- Output Type:
- Digital Output: High/Low (TTL)
- Analog Output: 0V to Vcc (0 – 5V)
- Detection Range: Adjustable via sensitivity potentiometer
- Frequency Response: 10Hz – 10kHz
- Dimensions: 32mm x 14mm x 7mm
- Mounting Holes: Two mounting holes for easy integration into various projects.
- Operating Temperature: -10°C to +70°C
- Interface: 3-pin interface (VCC, GND, Signal)
- Compatibility: Compatible with Arduino and other microcontrollers with digital and analog input capabilities.
SKU: n/a -
Sensors, Arduino
ACS712 5A Range Current Sensor
ACS712 5A Range Current Sensor Specifications:
- Current Range: 0A to 5A
- Supply Voltage: 4.5V to 5.5V
- Sensitivity: 185mV/A
- Output Voltage at No Current: VCC/2
- Output Voltage at Full Current: VCC/2 ± (5%)
- Operating Temperature Range: -40°C to 85°C
- Output Voltage Offset: 2.5V (typical)
- Output Noise: 5 mV (rms, typical)
- Response Time: 5 μs (typical)
- Isolation Voltage: 2.1 kV RMS
- Dimensions: Compact form factor for easy integration
- Mounting Holes: Facilitates secure installation in various environments.
Â
SKU: n/a -
Sensors, Arduino, Modules and Motors
Arduino KY-032 Obstacle Avoidance Sensor Module
Arduino KY 032 Sensor Module Specifications:
- Operating Voltage: 3.3V to 5V
- Detection Range: Adjustable, typically 2cm to 30cm
- Operating Current: <25mA
- Output Type:
- Digital Output (D0): High/Low signal indicating obstacle presence
- Analog Output (A0): Voltage proportional to the distance from the obstacle
- Indicator: Built-in status LED
- Dimensions: 30mm x 14mm x 8mm (L x W x H)
- Mounting Holes: Yes, for convenient installation
- Interface: 3-pin header for easy connection to Arduino
- Material: Quality materials for durability and reliability in various environments.
Â
SKU: n/a -
Arduino
Arduino Nano Sensor Shield I/O Expansion Board
Arduino Nano Sensor Shield I/O Expansion Board Specifications:
- Dimensions: Compatible with the Arduino NANO form factor.
- Operating Voltage: 5V DC
- Input Voltage (recommended): 7-12V
- Digital Pins: 14 (including 6 PWM outputs)
- Analog Pins: 8
- I2C Ports: 1
- SPI Ports: 1
- UART Ports: 1
- Current per I/O Pin: 20mA
- Flash Memory: 32KB (of which 2KB used by bootloader)
- SRAM: 2KB
- EEPROM: 1KB
- Clock Speed: 16MHz
3.3V outputSKU: n/a -
Arduino
Arduino Pro Mini 328 3.3V/8MHz
Arduino Pro Mini 328Â Specifications:
- ATmega328 running at 8MHz with external resonator (0.5% tolerance)
- Low-voltage board needs no interfacing circuitry to popular 3.3V devices and modules (GPS, accelerometers, sensors, etc)
- 0.8mm Thin PCB
- USB connection off board
- Weighs less than 2 grams!
- Supports auto-reset
- 3.3V regulator
- Max 150mA output
- Over current protected
- DC input 3.3V up to 12V
- On board Power and Status LEDs
- Analog Pins: 8
- Digital I/Os: 14
- 0.7×1.3″ (18x33mm)
SKU: n/a -
Arduino, Project Boards
Arduino Prototype Shield with 170 Pinhole Breadboard
Arduino Prototype Shield Features
- Reset button up top
- ICSP header
- Lots of GND and +5V rails
- DIP prototyping area makes it easy to add more chips
- SOIC prototyping area above USB jack for up to 14-pin SOIC chip, narrow medium or wide package.
- A ‘mini’ breadboard included
- Extra 6mm (0.24 in) button
SKU: n/a -
Sensors, Arduino
Arduino RPM Sensor For Measuring Rotational Speed
Arduino RPM Rotational Speed Measuring Sensor Specifications:
- Operating Voltage: 5V DC
- Operating Current: <20mA
- Rotational Speed Range: 0 to 30,000 RPM
- Output Signal Types: Analog and Digital (TTL)
- Sensor Type: Non-Contact Magnetic Sensor
- Resolution: 1 RPM
- Interface: Compatible with Arduino (Analog and Digital Pins)
- Dimensions: Compact design for easy integration (specific dimensions may vary)
Â
SKU: n/a -
Arduino

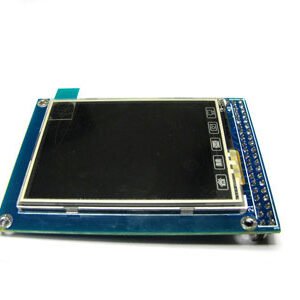

Arduino TFT Display 3.2 Inch LCD
Arduino TFT Display 3.2 Inch LCD Features:
- Support Arduino Mega2560 Directly inserted
- With a Full-angle IPS TFT panel
- OnBorad level conversion chip for 5V/3.3V MCU
- Compatible with 3.3/5 V operation voltage level
- Compatible with Arduino-Series Development Board.
- (Please notice: This Screen is not a touch screen)
- Provided 12-examples with Arduino,3-examples with STM32
- With an SD Card Socket
- With SPI FLASH circuit
Specifications:
- Driver IC: ILI9481
- Screen Size: 3.2 inch
- Display Size : 67.68(W) * 45.12(L) (mm)
- Backlight Type: Highlighting White 6 LED
- Screen Resolution: 480 * 320 Pixel (HVGA)
- Power Consumption : 80~110(mA)
- Screen Type: TFT (IPS Whole Perspective)
- Power : 5V / 3.3V
- Touch Function: None
- Data Bus: 16 Channels Parallel Bus
- Module Interface : 36Pin (Compatible with Arduino Mega2560)
- Size : 89.92(W) * 54.25(L) (mm)
SKU: n/a -
Arduino
Arduino Uno R3
Arduino Uno R3 board Specifications:
- It is an ATmega328P based Microcontroller
- The Operating Voltage of the Arduino is 5V
- The recommended input voltage ranges from 7V to 12V
- The i/p voltage (limit) is 6V to 20V
- Digital input and output pins 14
- Digital input & output pins (PWM)-6
- Analog i/p pins are 6
- DC Current for each I/O Pin is 20 mA
- DC Current used for 3.3V Pin is 50 mA
- Flash Memory -32 KB, and 0.5 KB memory is used by the boot loader
- SRAM is 2 KB
- EEPROM is 1 KB
- The speed of the CLK is 16 MHz
- In Built LED
- The length and width of the Arduino are 68.6 mm X 53.4 mm
- The weight of the Arduino board is 25 g
SKU: n/a
