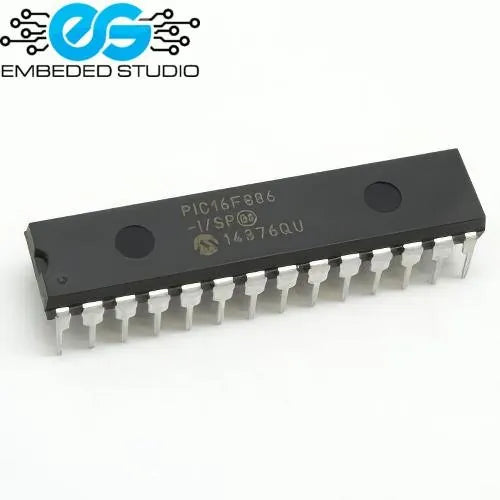

PIC16F886 Microcontroller IC — 8-Bit PIC MCU 28-Pin
Regular price
Rs.525.00
Sale price:
Rs.525.00
Regular price:
Sale:
-0%
Shipping calculated at checkout.
In stock, ready to ship
PIC16F886 — 8-Bit Enhanced Mid-Range PIC Microcontroller
The PIC16F886 is a versatile 8-bit microcontroller from Microchip Technology, offering more I/O pins and memory than the PIC16F883. With 14KB of Flash, 11-channel 10-bit ADC, and full EUSART/SPI/I2C support, it is ideal for more complex embedded control applications, industrial automation, and sensor interfacing projects in Pakistan.
Technical Specifications
| Parameter | Value |
|---|---|
| Architecture | 8-bit RISC PIC |
| CPU Speed | Up to 20 MHz (5 MIPS) |
| Program Memory (Flash) | 14 KB |
| RAM | 368 Bytes |
| EEPROM | 256 Bytes |
| I/O Pins | 24 |
| Timers | 4 (Timer0, Timer1, Timer2, Timer3) |
| ADC | 10-bit, 11 channels |
| Communication | EUSART, MSSP (SPI/I2C) |
| PWM | 2 CCP modules |
| Operating Voltage | 2.0V – 5.5V |
| Package | 28-pin DIP / SOIC / SSOP |
| Operating Temperature | -40°C to +85°C |
Key Features
- Enhanced mid-range PIC core with 49 instructions
- 14KB Flash with self-read/write capability
- 368 bytes RAM — more than PIC16F883
- 10-bit ADC with 11 input channels
- EUSART for RS-232/RS-485 communication
- MSSP module supporting SPI and I2C
- In-Circuit Serial Programming (ICSP)
- Compatible with MPLAB IDE and XC8 compiler
Pin Configuration (28-pin DIP)
Key pins: VDD (Pin 20), VSS (Pin 8, 19), MCLR/VPP (Pin 1), OSC1/CLKIN (Pin 2), OSC2/CLKOUT (Pin 3), PORTA (Pins 2-7), PORTB (Pins 21-28), PORTC (Pins 11-18).
Applications
- Industrial automation and process control
- Multi-sensor data acquisition systems
- Motor speed control with PWM
- RS-232/RS-485 serial communication
- Home automation and smart control systems
- Educational PIC microcontroller projects
Datasheet & Resources
Buy PIC16F886 microcontroller at the best price from Embeded Studio. Genuine Microchip PIC IC with
