IC and IC Sockets

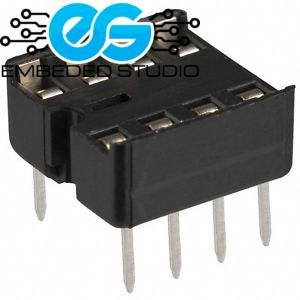

Socket 8-Pin
Socket 8 Pin Specifications:
- Pin Count: 8
- Mounting Style: Through-hole or Surface Mount Device (SMD), depending on application requirements.
- Material: High-quality, durable materials to ensure mechanical strength and reliability in various operating conditions.
- Contact Material: Phosphor Bronze or Beryllium Copper for excellent electrical conductivity and resistance to corrosion.
- Contact Plating: Gold or Tin plating options to maintain a secure and low-resistance connection.
- Pitch: Standard pitch to accommodate 8-pin IC packages with precision.
- Socket Body: Robust design for mechanical stability and ease of handling during insertion and extraction of ICs.
- Socket Insulation: Insulating material to prevent short circuits and ensure electrical isolation between pins.
- Operating Temperature Range: Suitable for a wide temperature range to meet diverse application requirements.
- Current Rating: Adequate current-carrying capacity to handle the specified ICs.
- RoHS Compliance: Compliant with RoHS (Restriction of Hazardous Substances) directives for environmental safety.
- Package Dimensions: Precise dimensions to accommodate the specified 8-pin IC package size and configuration.
- Insertion and Extraction Force: Optimized for easy insertion and removal of ICs while maintaining a secure connection.
- Durability: Designed for a high number of insertion and extraction cycles to ensure long-term reliability.
- Application: Suitable for use in various electronic circuits, prototyping boards, and test setups where 8-pin ICs are employed.
- Compatibility: Compatible with a range of 8-pin ICs from different manufacturers, offering versatility in circuit designs.
₨4
CompareSocket 8 Pin is a versatile and reliable component designed to accommodate integrated circuits (ICs) in an 8-pin configuration. This socket serves as a convenient interface between the IC and the printed circuit board (PCB), allowing for easy insertion, removal, and replacement of ICs without the need for soldering. The Socket 8-Pin is well-suited for a variety of applications, including prototyping, testing, and development environments.
Based on 0 reviews
Be the first to review “Socket 8-Pin”
You must be logged in to post a review.
