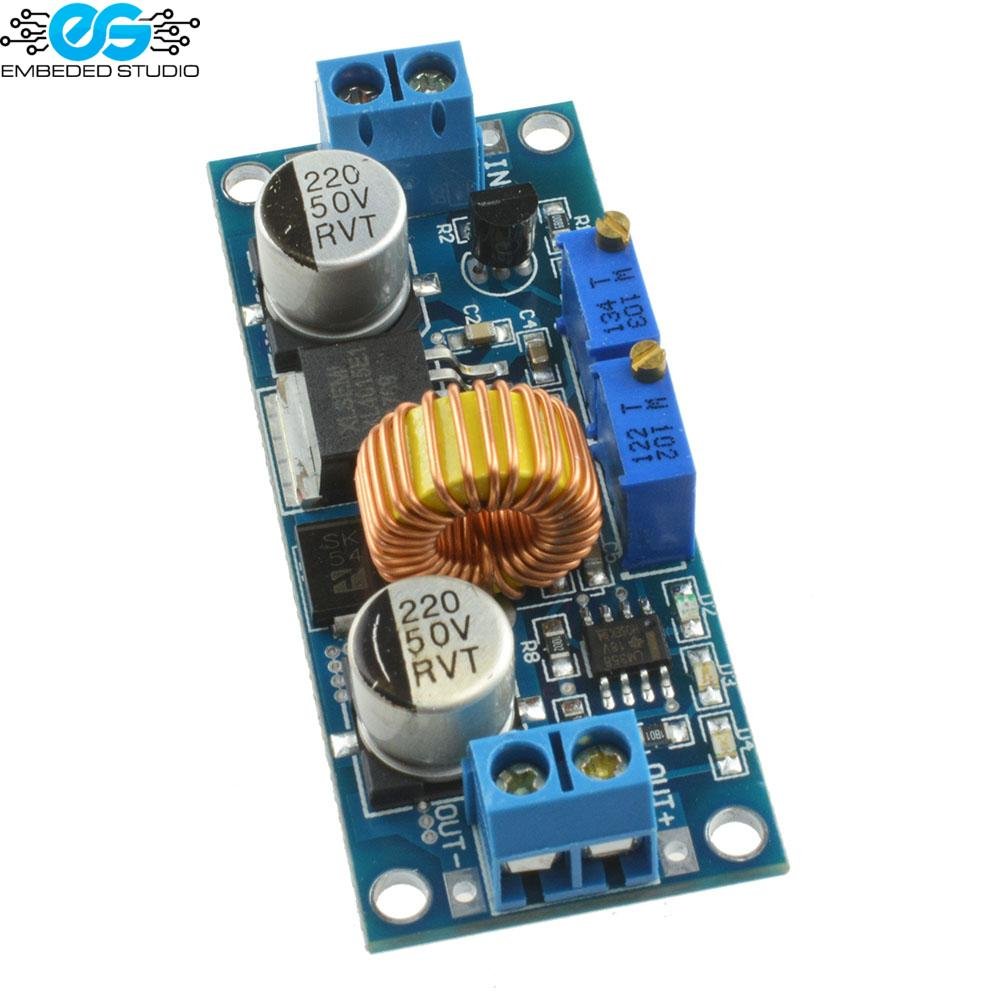

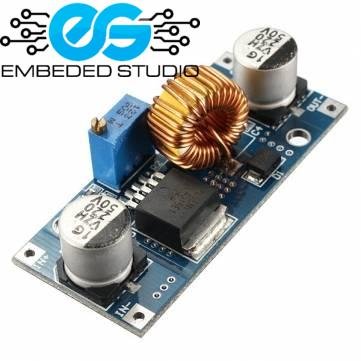

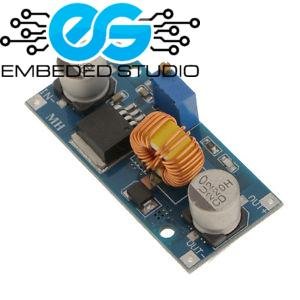

XL4015 5A DC-DC Step Down Adjustable Power Supply Module Buck Converter


Specification

  1. Input voltage range:5-36VDC
  2. Output voltage range:1.25-32VDC adjustable
  3. Output current: 0-5A
  4. Output power: 75W
  5. High efficiency up to 96%
  6. Built in thermal shutdown function
  7. Built in current limit function
  8. Built in output short protection function
  9. Input reverse polarity protection

350

Compare

XL4015 5A DC-DC Step Down Adjustable Power Supply Module Buck Converter

The XL4015 5A DC-DC Step Down Adjustable Power Supply Module Buck Converter based on LM2596 advocate current to 3.0A, but only to 1.8A. However, being introduced module adds a heatsink, using high-power devices. This module can easily reach 4A, and 50W, add heat sink circumstances can reach 75W, and has a high price!!  5A 75W XL4015 DC-DC Converter Adjustable Step-Down Module 4.0-38V to 1.25V-36V DIY Adjustable Power Supply XL4015 LED module step down The DC-DC Adjustable Step-Down Converter Module has large power, high efficiency, low-ripple. With power indicator, on-board voltmeter. The voltmeter can calibrate automatically. The measure can be changed between input and output voltage, with an indicator. The voltmeter can also be shut down. The board uses a connection terminal for easy wiring.

The XLM2014 module with a stable and accurate DC power supply. Then short-press the button on the right side to select which one you need to adjust (input or output). Long-pressing the button on the right side makes the module enter calibration mode. After releasing the button, the related LED will blink to indicate which voltage is now calibrating, and the numeric display will blink with the present value.

Short-press the button to change the present value. Short-press the button on the right side to increase the voltage by one unit. Short-press the button on the left side to reduce the voltage by one unit.

  • Module highlights 5A high power、high efficiency and low ripple with a power indicator !!!
  • Input voltage range:4~38VDC(Note:input voltage not exceeding 38V)
  • Output voltage range:1.25-36VDC adjustable
  • Output current: 0-5A, recommended for use in 4.5A.
  • Output power: 75W
  • Working temperature: -40~+85 degrees
  • Operating frequency: 180KHz
  • Efficiency:96%(max)
  • Short circuit protection: yes(limit current 8A).
  • Over temperature protection
  • Input reverse polarity protection: None (if required, the high current diode in series with the input).
  • L x W x H = 54 * 23 * 18mm

Application:

The DC/DC buck module applications the input voltage is higher than the output voltage of the buck field, such as battery, power transformer, DIY adjustable regulated power supply, 24V Vehicle notebook power supply,industrial equipment buck.12V buck to 3.3V, 12V buck to 5V,  24V buck to 5V,24V buck to 12V,  36V buck to 24V etc.
Package Included :
1PC*XL4015 DC-DC Step Down Adjustable Power Supply Module LED Lithium Charger 5A Max
1PC*heat sink
